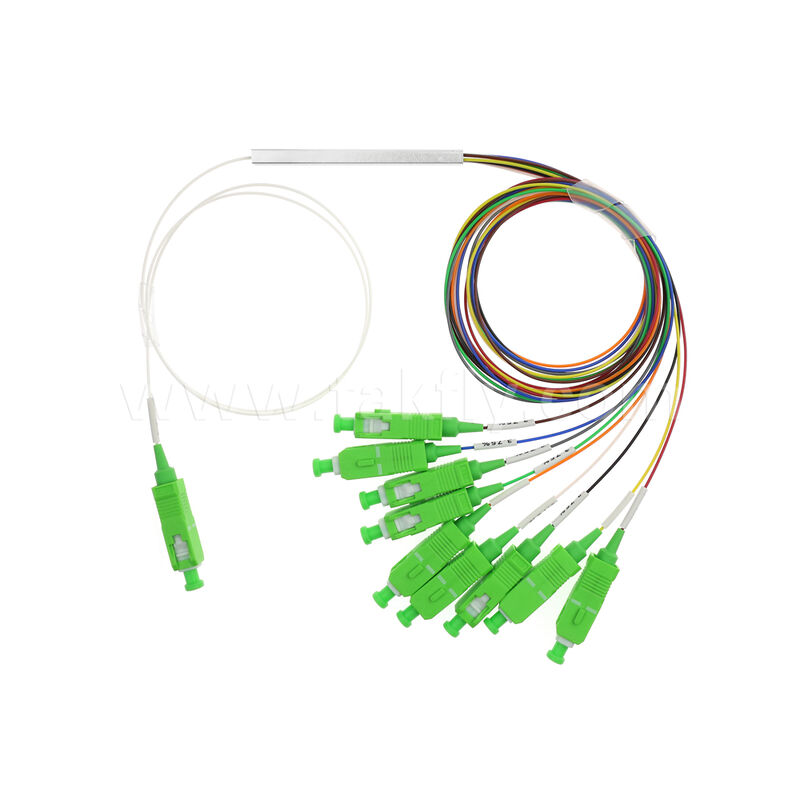

1×9 Channe PLC Splitter with 0.9mm Fiber for FTTH/FTTX Optical Distribution Networks
Подробная информация о продукте:
| Место происхождения: | Гуандун, Шэньчжэнь |
| Фирменное наименование: | TAKFLY |
| Сертификация: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Номер модели: | КСФП28-4СФП28-ххх |
Оплата и доставка Условия:
| Количество мин заказа: | 1 штук |
|---|---|
| Цена: | US$0.01 ~ US$1200/PC |
| Упаковывая детали: | коробка + коробка + картон |
| Время доставки: | 3-7 рабочих дней |
| Условия оплаты: | LC,D/A,D/P,T/T,Western Union,MoneyGram |
|
Подробная информация |
|||
| Выделить: | 1×9 PLC splitter for FTTH,0.9mm fiber PLC splitter,FTTX optical distribution network splitter |
||
|---|---|---|---|
Характер продукции
1×9 Channel PLC Splitter with 0.9mm Fiber
Designed for FTTH/FTTX Optical Distribution Networks
Product Overview
This 1×9 Mini PLC splitter features a compact design with 0.9mm outer diameter fiber, providing one input evenly split into nine output ports. Ideal for high-density fiber distribution equipment and installations with limited space requirements.
Based on planar lightwave circuit technology, it delivers stable splitting uniformity across the operating wavelength range of 1260nm to 1650nm, ensuring compatibility with passive optical networks. All insertion loss and uniformity parameters meet IEC 61753-2 standards.
Available Options
- Connector type: None / LC / SC connector
- Housing size: Customizable upon request
- Fiber type: G.657A1 / G.652D, etc.
Key Features
- Broadband Operation Wavelength
- Low Insertion Loss
- Low Polarization Dependent Loss (PDL)
- Compact Design
- Excellent Channel-to-Channel Uniformity
- High Reliability and Stability
Product Data
| Operating Wavelength (nm) | 1260-1650 | Inspected Date | 2025/3/14 |
| P/N | 1x9-0.9-0.5M-SC/APC | S/N | 25031400002 |
| Fiber Type | G657A1 | Fiber Length (m) | >=0.5 |
| Connector Type | SC/APC | Package Dimension (mm) | 60x7x4 |
| Storage Temperature | -40~+85℃ | Operating Temperature | -40~+85℃ |
Applications
- Telecommunication Sector
- PON Systems
- FTTH / FTTX Optical Distribution Networks
- CATV Signal Splitting
- Video Transmission
- Passive Optical LAN (POL)
- Fiber Distribution Frame (ODF) Internal Connections
- Data Center Splitter Links
Performance Specifications
| Item | IL(dB) | PDL(dB) | RL(dB) |
|---|---|---|---|
| Wavelength(nm) | @1310 | @1490 | @1550 |
| Spec. | MAX.16.30 | ||
| Port-70% | 2.04 | 1.77 | 1.67 |
| Uniformity(≤1.0dB) | 0.53 | 0.51 | 0.48 |
Technical Specifications
| Operating Wavelength (nm) | 1260 ~ 1650 |
| Fiber Type | ITU-T G657A1, G657A2 and G.652D |
| Max. Temperature Stability (dB) | 0.5 (Typical 0.3) |
| Operating Temperature (℃) | -40 ~ +85 |
| Storage Temperature (℃) | -40 ~ +85 |
Splitter Performance by Type
| Type (1×N) | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Max. Insertion Loss (dB) | 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3 |
| Max. Uniformity (dB) | 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 |
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a manufacturer, FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
What's your MOQ?
MOQ can be 1 pcs, but the price is not competitive. More quantity, the price will be more competitive.
How is your quality?
Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified. All products are 100% tested before delivery.
What's your lead time?
It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2-3 working days within 5000 pcs. We keep regular products in stock and can handle urgent orders.
Additional Note: With the same quality standard, if you could get better price from the market, TAKFLY also could support you same price. 3 years work experience in optical fiber industry, it's honored to be your professional product assistant.
