Outdoor GYTA53 Optical Cable Steel wire 2-144F
Подробная информация о продукте:
| Место происхождения: | Китай, Шэньчжэнь |
| Фирменное наименование: | DF/OEM/Nuetral |
| Сертификация: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Номер модели: | Наружный оптический кабель GYTA53 Стальная проволока 2-144F |
Оплата и доставка Условия:
| Количество мин заказа: | Возможен торг |
|---|---|
| Цена: | negotiable denpend on QTY |
| Упаковывая детали: | Блистерная коробка+картонная коробка |
| Время доставки: | 5-9 рабочих дней в зависимости от количества |
| Условия оплаты: | Western Union, T/T, MoneyGram/Paypal |
| Поставка способности: | 1000 шт/день |
|
Подробная информация |
|||
| Название продукта: | Наружный оптический кабель GYTA53 Стальная проволока 2-144F | Количество клетчатки: | 2-144 |
|---|---|---|---|
| Покрытие: | 125 мкм | Покрытие (±5 мкм): | 250 мкм |
| Диаметр свободной трубки (мм): | 2 мм | Свободный материал трубки: | PBT/PP |
| Силовой элемент Усиление центра: | Стальная проволока/стальная проволока с PE-покрытием | Материал оболочки: | MDPE/HDPE |
| Цвет: | Черный | Вес кабеля (kg/km): | 160-360 |
| Рабочая температура: | -20℃~70℃ | Марка волокна: | Corning, YOFC, OFS, Драка |
Характер продукции
Outdoor GYTA53 Optical Cable Steel wire 2-144F
The fibers, 250um, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound.
A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core. which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
Outdoor GYTA53 Optical Cable Applications
- Adopted to outdoor distribution;
- Long distance and local area network communication.
- Suitable for aerial, duct and direct buried;
Outdoor GYTA53 Optical Cable Features
- Good mechanical and temperature performance;
- Special tube filling compound ensure a critical protection of fiber;
- Crush resistance and flexibility;
- The following measures are taken to ensure the cable watertight:
- High strength loose tube that is hydrolysis resistant;
Steel wire used as the central strength member
Loose tube filling compound
100% cable core filling
APL moisture barrier
PSP enhancing moisture-proof
Water-blocking material
Outdoor GYTA53 Optical Cable Parameter and Properties
| Optical fiber type | G.652D | G.655 | 50/125um | 62.5/125um | |
Attenuation | @850nm | ... | ... | ≤3.5 dB/km | ≤3.5 dB/km |
@1300nm | ... | ... | ≤1.5 dB/km | ≤1.5 dB/km | |
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km | ... | ... | |
@1550nm | ≤0.22 dB/km | ≤0.23dB/km | ... | ... | |
Bandwidth | @850nm | ... | ... | ≥500 MHz·km | ≥200 MHz·km |
@1300nm | ... | ... | ≥1000 MHz·km | ≥600 MHz·km | |
Numerical Aperture | ... | ... | 0.200±0.015NA | 0.275±0.015NA | |
Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm | ... | ... | |

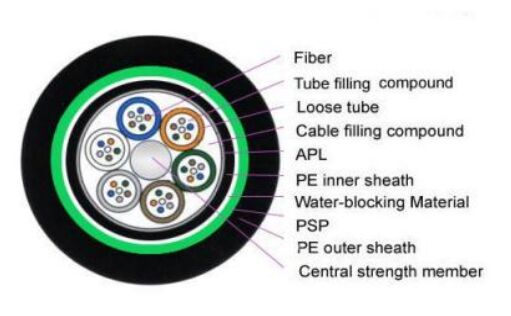

Outdoor GYTA53 Optical Cable Structure
Other Requirements
Length of production optical cable:2000M
Optical cable outer sheath printing specifications, such as:
OPTICAL FIBER CABLE GYTA53 144C 18.5 MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
