GJFXTKV Optical Cable MDPE/HDPE or LSZH 2-24F
Подробная информация о продукте:
| Место происхождения: | Китай, Шэньчжэнь |
| Фирменное наименование: | DF/OEM/Nuetral |
| Сертификация: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Номер модели: | ТК-ПК-48Ф-СК-ОС2-50М |
Оплата и доставка Условия:
| Количество мин заказа: | Возможен торг |
|---|---|
| Цена: | negotiable denpend on QTY |
| Упаковывая детали: | Блистерная коробка+картонная коробка |
| Время доставки: | 5-9 рабочих дней в зависимости от количества |
| Условия оплаты: | Western Union, T/T, MoneyGram/Paypal |
| Поставка способности: | 1000 шт./День |
|
Подробная информация |
|||
| Название продукта: | Оптический кабель GJFXTKV | Количество волокон: | 2 - 24 |
|---|---|---|---|
| Диаметр оптического волокна (±1 мкм): | 125 мкм | Диаметр покрытия оптического волокна (±5 мкм): | 250 мкм |
| Диаметр свободной трубки (мм): | 1,8 2,2-2,5 3,0 | Укрепление ядра: | Пряжа из электронного стекла или арамидная пряжа |
| Дополнительный: | Наполнитель | Материал оболочки: | MDPE/HDPE или LSZH |
| Цвет: | Черный | Внешний диаметр (mm): | 6,0; 8.0 |
| Вес кабеля (kg/km): | 45;55;85 | Эксплуатационная температура: | -20 ℃ ~ 70 ℃ |
| Оптоволоконная марка: | Корнинг, YOFC, OFS, Дракка | ||
| Выделить: | MDPE HDPE fiber optic cable,LSZH fiber optic cable,2-24F optical cable |
||
Характер продукции
GJFXTKV Optical Cable MDPE/HDPE or LSZH 2-24F
The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of water blocking glass yarn/Aramid yarn. Then the cable is completed with a PE/LSZH sheath.
Product Applications
- Adopted to indoor distribution
- Suitable for communication equipment served
- With excellent waterproofing performance
- Meet various requirements of market and clients
Product Features
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- The following measures are taken to ensure the cable watertight:
- Loose tube filling compound
- 100% cable core filling
- Meet various requirements of market and clients
Optical Parameter and Properties

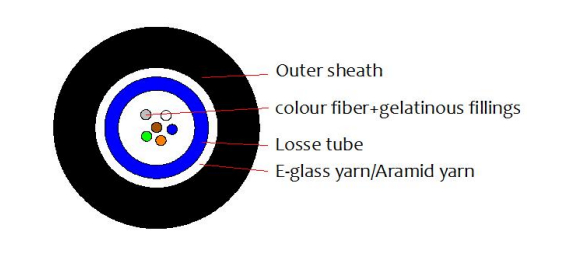

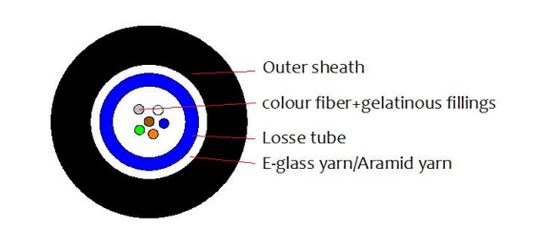

Product Structure
Other Requirements
- Length of production optical cable: 2000M
- Optical cable outer sheath printing specifications, such as:
OPTICAL FIBER CABLE GJFXTKV 24C 8.0 SM G652D MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
