FTTH-2C Optical Cable Steel wire LSZH
Подробная информация о продукте:
| Место происхождения: | Китай, Шэньчжэнь |
| Фирменное наименование: | DF/OEM/Nuetral |
| Сертификация: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Номер модели: | ТК-ПК-48Ф-СК-ОС2-50М |
Оплата и доставка Условия:
| Количество мин заказа: | Возможен торг |
|---|---|
| Цена: | negotiable denpend on QTY |
| Упаковывая детали: | Блистерная коробка+картонная коробка |
| Время доставки: | 5-9 рабочих дней в зависимости от количества |
| Условия оплаты: | Western Union, T/T, MoneyGram/Paypal |
| Поставка способности: | 1000 шт./День |
|
Подробная информация |
|||
| Название продукта: | Оптический кабель FTTH-2C | Количество волокон: | 2 |
|---|---|---|---|
| Диаметр оптического волокна (±1 мкм): | 125 мкм | Диаметр покрытия оптического волокна (±5 мкм): | 250 мкм |
| Диаметр силового элемента: | 1,2 мм (7*0,4 мм многожильный оцинкованный стальной провод) | Укрепление ядра: | Стальная проволока |
| Дополнительный: | Арамидная пряжа | Материал оболочки: | LSZH |
| Цвет: | Черный | Внешний диаметр (mm): | 3,5*6,5 |
| Вес кабеля (kg/km): | 23 | Эксплуатационная температура: | -20 ℃ ~ 70 ℃ |
| Оптоволоконная марка: | Корнинг, YOFC, OFS, Дракка | ||
| Выделить: | FTTH-2C optical cable steel wire,LSZH fiber optic cable,FTTH-2C LSZH optical cable |
||
Характер продукции
FTTH-2C Optical Cable Steel wire LSZH
Outdoor FTTH-2C Optical Cable Steel wire LSZH
FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit is positioned in the center. A steel wire as the additional strength member is also applied, then, the cable is completed with a black LSZH (low-smoke, halogen-free, flame retardant) sheath.
FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit is positioned in the center. A steel wire as the additional strength member is also applied, then, the cable is completed with a black LSZH (low-smoke, halogen-free, flame retardant) sheath.
Product Applications
- Good mechanical and environmental characteristic
- Anti-UV characteristics meet the requirements of relevant standards
- The mechanical characteristics meet the requirements of relevant standards
- Soft, flexible, easy to lay and splice, and with big capacity data transmission
- Meet various requirements of market and clients
Product Features
- Adopt a tight sleeve optical fiber for easy stripping
- Aramid yarn reinforced element makes the optical cable have excellent tensile resistance
- The advantages of external protective materials such as corrosion resistance, waterproofing, ultraviolet protection, flame retardant, environmental protection, etc.
- Meet various requirements of market and clients
Optical Parameter and Properties

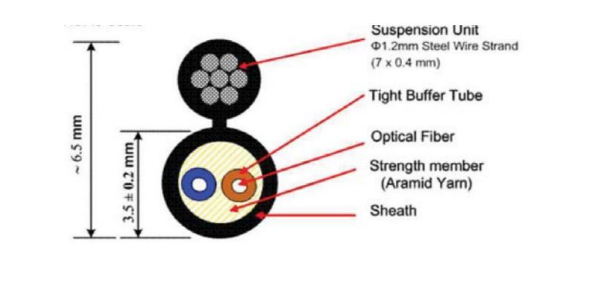

Product Structure
Other Requirements
- Length of production optical cable: 2000M
- Optical cable outer sheath printing specifications, such as: OPTICAL FIBER CABLE FTTH-2C 3.5X6.5 LSZH MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
