Indoor Duplex Optical Cable 2000M LSZH/PVC/PU
Подробная информация о продукте:
| Место происхождения: | Китай, Шэньчжэнь |
| Фирменное наименование: | DF/OEM/Nuetral |
| Сертификация: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Номер модели: | ТК-ПК-48Ф-СК-ОС2-50М |
Оплата и доставка Условия:
| Количество мин заказа: | Возможен торг |
|---|---|
| Цена: | negotiable denpend on QTY |
| Упаковывая детали: | Блистерная коробка+картонная коробка |
| Время доставки: | 5-9 рабочих дней в зависимости от количества |
| Условия оплаты: | Western Union, T/T, MoneyGram/Paypal |
| Поставка способности: | 1000 шт./День |
|
Подробная информация |
|||
| Название продукта: | Внутренний дуплексный оптический кабель | Количество волокон: | 2 |
|---|---|---|---|
| Укрепление ядра: | Арамидная пряжа | Материал оболочки: | LSZH/PVC |
| Внешний диаметр (mm): | 1,6*3,2-3,0*6,0 | Кабельный вес: | 5,2-15 (кг/км) |
| Цвет: | Белый или индивидуальный | Длина волны: | 1310nm, 1550nm |
| Диаметр (±1 мкм): | 125 мкм | Диаметр покрытия (±5 мкм): | 250 мкм |
| Эксплуатационная температура: | -20 ℃ ~ 70 ℃ | Длина: | 2000 м или на заказ |
| Оптоволоконная марка: | Корнинг, YOFC, OFS, Дракка | ||
| Выделить: | indoor duplex fiber optic cable,LSZH PVC PU optical cable,2000M duplex fiber cable |
||
Характер продукции
Indoor Duplex Optical Cable 2000M LSZH/PVC/PU
Product Description
Simplex cable use Φ600μm or Φ900μm tight buffer fiber as optical communication medium. The tight buffer fiber wrapped with a layer of aramid yarn as strength member units, which is most extruded to produce a layer of (PVC) or low-smoke halogen-free material (LSZH, low-smoke, halogen-free, flame retardant) jacket.
Product Applications
- Optical fiber active connection jumper or tail fiber
- Indoor shaft stage and forced ventilation level wiring
- Interconnection of instruments and communication equipment
Product Features
- Adopt a tight sleeve optical fiber for easy stripping
- Aramid yarn reinforced element makes the optical cable have excellent tensile resistance
- Good performance of flame-retardant, low induced attenuation within the operating temperature range
- The jacket of figure-8 structure is easy to be peeled off and used
- Meet various requirements of market and clients
Optical Parameter and Properties
| Optical fiber type | Test wavelength | Decay | Full injection bandwidth (MHZ.km) | Effective modal bandwidth (MHZ.km) | Minimum bending radius(mm) |
|---|---|---|---|---|---|
| G652D | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 16 |
| G657A1 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 10 |
| G657A2 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 7.5 |
| 62.5/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥200/500 | 30 |
| 50/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥500/500 | 30 |
| OM3 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | 7.5 |
| OM4 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | 7.5 |
| OM5 | 850/953nm/1300nm | 3.0/.../1.0 | 3.5/.../1.5 | ≥3500/1850/500 | 7.5 |

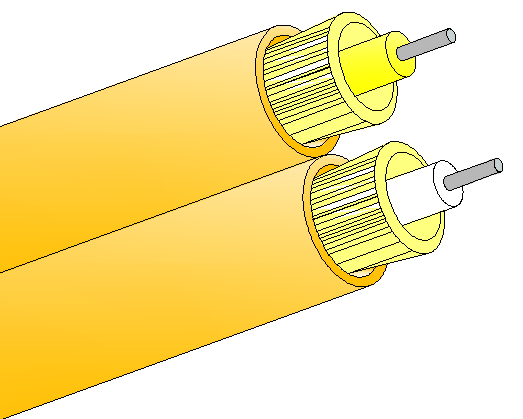

Product Structure
Product Picture
Why Choose TAKFLY?
Professional Manufacturer
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
