0.9mm 2.0mm 3.0mm LSZH SC APC Fiber Optic Pigtail -40C to +80C
Подробная информация о продукте:
| Сертификация: | RoHS, CE, ISO9001, VDE, CCC |
Оплата и доставка Условия:
| Количество мин заказа: | 1 |
|---|---|
| Цена: | 0.42 |
|
Подробная информация |
|||
| Структура соединения: | FC, SC | Форма материала: | Круглый проволока |
|---|---|---|---|
| Допускается боковое давление: | 100 (N/100 мм) | Допустил прочность на растяжение: | <100n |
| основной: | Одиночный ядро | Материал оболочки: | ПВХ/LSZH/OFNP/OFNR |
| Тип волокна: | G652D, G655, G657 | Полировка: | ПК, UPC, APC |
| Ядро номер: | Простой | Рабочая температура: | -40C ~+80C |
| Длина кабеля: | 1M/3M/5M/Конфигурация | Волоконно -режим: | Один режим или многомод |
| Диаметр кабеля: | 0,9 мм, 2,0 мм, 3,0 мм | Операция по длине волны: | 1310/1550NM |
| Вставка потеря: | <0,2DB | ||
| Выделить: | LSZH SC APC fiber optic pigtail,0.9mm fiber optic pigtail -40C to +80C,3.0mm SC APC fiber optic cable |
||
Характер продукции

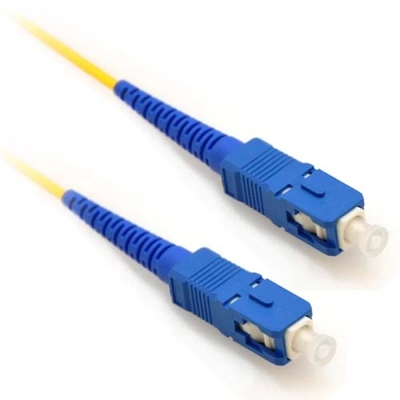

0.9mm 2.0mm 3.0mm LSZH SC APC Fiber Optic Pigtail
A Pigtail is a fiber optic cable used to attach one device to another for signal routing.
Key Features
- Type SC Fiber Optic Patchcord and Pigtail
- Single mode and Multimode PC or 8 degree APC 9 degree APC
- Cable 0.9mm, 2.0mm, 2.4mm or 3.0mm with simplex or duplex and 4,6,8,12,24,48 Core
- Custom order length
- Cable color green, yellow, orange or Customized Designs
- Cable PVC, Hytrel, LSZH, OFNP, OFNR
- All parts compliant with ROHS IEC standard compatible
- GR-326-CORE Compliant
Applications
- Telecommunication
- CATV
- LAN & WAN
- Network
- Broadband
- FTTH
Technical Specifications
| Parameter | Specification |
|---|---|
| End face type | PC, UPC and APC |
| Fiber type | SM(G652,G655,G657); MM(OM1-OM5) |
| Cable Diameter | 2.0, 3.0 or customized (Simplex/duplex) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -20ºC~70ºC |
| Storage Temperature | -40ºC~80ºC |
| Outer Sheath Material | PVC, LSZH, PU |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | Customized |
Product Images
Why Choose TAKFLY
Professional Manufacturer
- 18+ years manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years experience
- 26+ R&D Engineers
- 16 Germany imported Injection Machines and 10+ Cable Production Lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- OEM Brand accepted
- Regular participation in major industry exhibitions
- 24/7 after-sales service available
Quality Control
- Raw material incoming inspection
- Full check after each production process
- Half-done product inspection
- Finished product inspection before packing
- Pre-shipment spot check
Delivery & Shipping
- Samples: 1-3 working days
- Mass production: 3-7 working days
- Flexible packaging options
- Multiple shipping methods available (DHL, UPS, FEDEX, TNT, EMS, Sea, Air)
Payment Terms
T/T, Paypal, Western Union and L/C accepted.
Pricing
Volume discounts available for large quantity orders.
With 5+ years experience in this field, we provide excellent service and professional support. Contact us today for inquiries or questions about our products.
Хотите узнать больше подробностей об этом продукте
