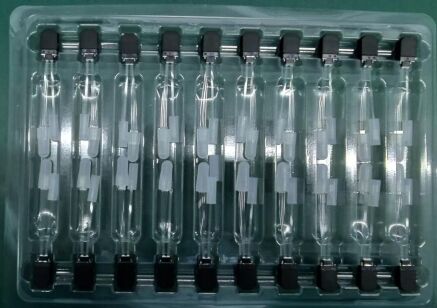

3xFA-2xMT Product Specifications SM Low IL 0.35dB High Performance
Подробная информация о продукте:
| Место происхождения: | Китай, Шэньчжэнь |
| Фирменное наименование: | DF/OEM/Nuetral |
| Сертификация: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Номер модели: | 3xFA-2xMT SM Низкий уровень шума 0,35 дБ Высокая производительность |
Оплата и доставка Условия:
| Количество мин заказа: | Возможен торг |
|---|---|
| Цена: | negotiable denpend on QTY |
| Упаковывая детали: | Блистерная коробка+картонная коробка |
| Время доставки: | 5-9 рабочих дней в зависимости от количества |
| Условия оплаты: | Western Union,T/T,MoneyGram/Paypal |
| Поставка способности: | 1000 шт/день |
|
Подробная информация |
|||
| Название продукта: | 3xFA-2xMT SM Низкий уровень шума 0,35 дБ Высокая производительность | Тип волокна: | СМ Г652Д/Г657А/Г657Б3 |
|---|---|---|---|
| Потеря взаимодействия: | IL<0,35 дБ (1310 нм) | Возвратная потеря: | MT: UPC> 35 дБ, APC> 40 дБ RX: RL> 35 дБ |
| Диаметр волокна: | (8,6～9,5）±0,4 мкм | затухание: | ≤ 0,4 дБ/км при 1310 нм ≤ 0,3 дБ/км при 1550 нм |
| Рабочая температура: | -40℃~85℃ | Оценка: | Телекоммуникационный класс |
| Сертификат: | CE/ROHS/REACH | ||
| Выделить: | SM low IL PM components,high power components 0.35dB,3xFA-2xMT high performance components |
||
Характер продукции
3xFA-2xMT Product Specifications SM Low IL 0.35dB High Performance
Product Overview
As the demand for artificial intelligence computing power grows exponentially, optical interconnect technology has become the core engine for breaking performance bottlenecks. As one of the top five domestic enterprises to take the lead in mass production and testing of Fiber Array Unite (FAU), Takfly stands at the forefront of the AI optical communication wave with profound technical expertise. Our FA-MT product, with its exceptional pitch error control capability, provides an irreplaceable core solution for next-generation high-speed optical modules and AI computing clusters.
Key Applications & Advantages
- Technological Leadership: Top-five domestic mass production and testing capabilities ensure product maturity and reliability
- Superior Performance: Precise pitch error control provides your optical module products with a core competitive edge
- Strategic Partnership: Join us to seize the trillion-dollar market opportunities in AI optical interconnects
Product Features
- High-precision manufacturing process: Proprietary processes achieve ultra-precise pitch control, with a pitch error of <0.8μm, ensuring stable optical signal transmission
- Customized design: Customizable to meet specific customer size requirements, adapting to diverse application scenarios
- Clear production capacity planning: Offering a full range of FAU and derivative products, covering needs from 100G to 800G and even next-generation optical modules, enabling rapid response to market demands
- Superior performance: As shown in the performance curves, key indicators such as insertion loss are controlled at industry-leading levels, with a peak loss of only 0.664dB, and stable below 0.4dB in most ranges
Fiber Parameters
| Parameter | Specification |
|---|---|
| Fiber type | SM G652D/G657A/G657B3 |
| Fiber Diameter | (8.6～9.5)±0.4um |
| Cladding Diameter | 125±1um |
| Coat Diameter | 245±10um |
| Attenuation | ≤ 0.4 dB/km @ 1310nm ≤ 0.3dB/km @ 1550nm |
| Operating Temperature | -40℃～85℃ |
| Environmental friendly | Complies with the EU RoHS and lead-free |
Optic Performance
| Parameter | Specification |
|---|---|
| Plug Type | 12F MT,16F MT,24F MT |
| FA | FA/42.5°,FA/8°Different Angle |
| SM Insert Loss | IL＜0.35dB (1310nm) |
| SM Return Loss | MT:UPC＞35dB ,APC＞40dB RX:RL＞35dB |
| Operating Temperature | -40℃～85℃ |
| Operating Humidity | 0%～95% |
| Storage Temperature | -40℃～85℃ |
Why Choose TAKFLY
Manufacturing Excellence
- Over 26 years of manufacturing experience in fiber optic products
- More than 500 assembly workers with 5+ years of experience
- 10+ R&D Engineers dedicated to product innovation
- 16 sets of Germany imported injection machines and 16 production lines
- 30+ sets of testing equipment including OTDR, 3D, VFL, IL & RL test instruments, tension strength testers, crush resistance testers, power meter testers, and light checkers
- OEM branding available
- Regular participation in major industry exhibitions: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material incoming inspection with spot checks before production
- Comprehensive inspection after each manufacturing process
- Thorough inspection of work-in-progress
- Complete finished product inspection before packaging
- Final spot checks before shipping
Delivery & Packaging
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Flexible packaging options: Plastic bags, cartons, and pallets available according to customer requirements
Interested in our products or have questions?
Feel free to contact us at any time for more information or technical support.
