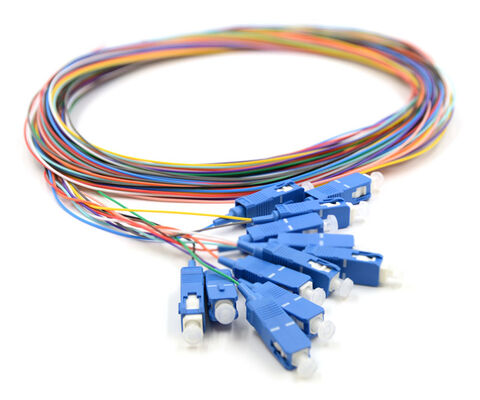

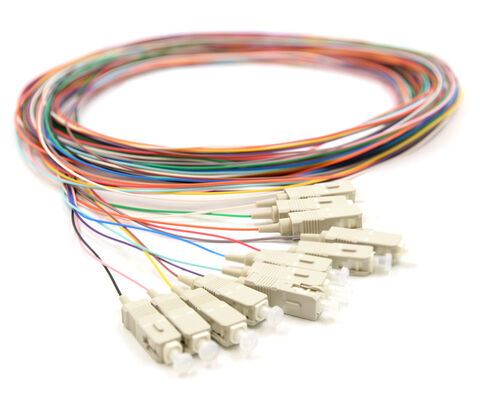

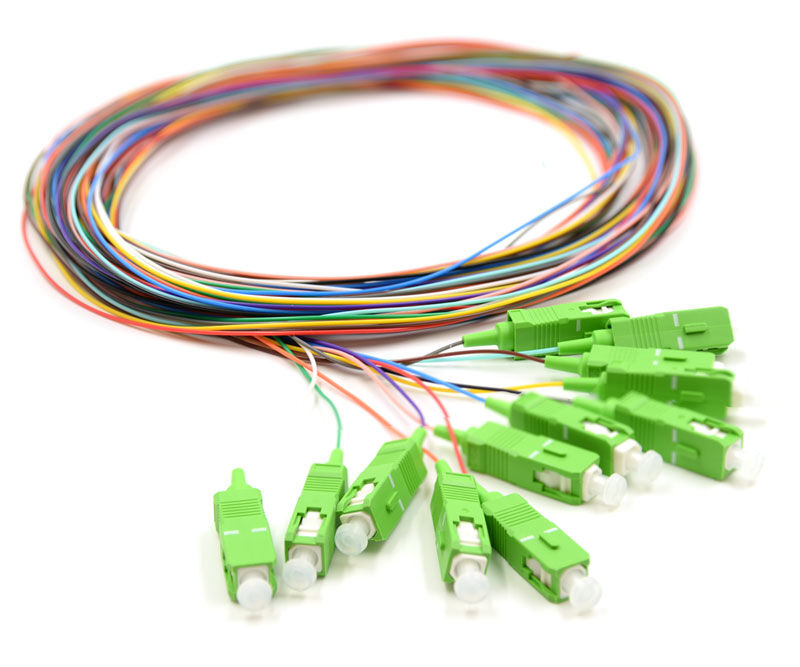

Telecom Grade Fiber Optic Patch Cord with Low Insertion Loss ≤0.3dB and Customized Length Options
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | DF/OEM/Nuetral |
| Сертификация: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Номер модели: | TK-CS-3.0-1M |
Оплата и доставка Условия:
| Количество мин заказа: | 100 шт. |
|---|---|
| Цена: | US$0.01~2.79/PC |
| Упаковывая детали: | Экспортная стандартная упаковка |
| Время доставки: | 5-9 рабочих дней в зависимости от количества |
| Условия оплаты: | Western Union,T/T,MoneyGram/Paypal |
| Поставка способности: | 10000 шт/день |
|
Подробная информация |
|||
| Название продукта: | ST до LC OM1 OM2 Fiber Optic Duplex Patch Cord | Потеря взаимодействия: | ≤0,3 дБ |
|---|---|---|---|
| Возвратная потеря: | PC MM ≥ 35 дБ | Тип волокна: | OM1/OM2 |
| Диаметр: | 3,0 мм | Тип разъема: | PC/UPC |
| Материал куртки: | LSZH/PVC/PU | Цвет: | Оранжевый или по индивидуальному заказу |
| Длина волны: | 1310nm, 850nm | Длина: | 1 м или индивидуально |
| Рабочая температура: | -40 ℃ ~ 80 ℃ | Диаметр волокна: | 50/125 |
| Оценка: | Телекоммуникационный класс | Сертификат: | CE/ROHS/REACH |
| Производственная мощность: | 10000 шт/день | ||
Характер продукции
FC-SC 4F Patch Cord
Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Specifications
| End face type | PC, UPC and APC |
|---|---|
| Fiber type | SM (G652, G655, G657); MM (OM1-OM5) |
| Cable Diameter | 7.5mm (Fiber optic sub unit 2.0mm) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM ≥ 50dB, APC SM ≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | > 70N |
| Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -40℃ ~ 80℃ |
| Outer Sheath Material | PVC, LSZH, PU |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | Customized |
Why Choose TAKFLY
Our products are installed in major worldwide projects and trusted by leading operators. We maintain long-term partnerships with industry leaders including Lapp, Amper, Telefonica, Orange, Corning, Amphenol, SENKO, and Ericsson.
We welcome all inquiries and promise high quality, competitive pricing, and fast delivery service regardless of order size.
Frequently Asked Questions
1. Are you a manufacturer?
Yes, we are a manufacturer and FTTH solution/data center total solution provider in Shenzhen, China, established in 2000.
2. What's your MOQ?
MOQ can be 1 piece, but pricing becomes more competitive with larger quantities.
3. Can you quote FOB price?
Yes. We deliver by air, DHL, TNT, UPC, FEDEX, etc. Large quantities are shipped by sea. We provide quotes with freight and lead times based on your requirements.
4. How is your quality?
Our production follows IEC and European standards with CE, ISO, RoHS, CPR, and ANATEL certifications. All products are 100% tested before delivery.
5. What's your lead time?
For fiber optic patch cords: 2-3 working days for up to 5,000 pieces. We maintain regular product stock and can accommodate urgent orders.
6. What's your warranty?
1-year warranty for patch cords (non-artificial damage). For artificial damage, we provide free repair with freight paid by customer.
7. What's your packing?
International export standard packaging. Custom logo printing available upon request.
8. Can you offer OEM/ODM?
Yes, all products accept OEM/ODM. We can sign Confidentiality Agreements.
9. Can I have a sample?
Free samples available for products under $10. Buyer pays freight.
10. How can I order?
- Send inquiry with product details and quantity
- We provide quotation with lead time
- Confirm PI with bank account
- Production begins after payment
- Confirm consignee details
- Receive tracking number after delivery
11. What is your payment term?
T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
Price Match Guarantee: With the same quality standard, if you find better pricing elsewhere, TAKFLY will match it.
Our team brings 3+ years of optical fiber industry experience and is honored to serve as your professional product assistant.
