SC/UPC-SC/UPC Transparent Invisible FTTH Drop Cable Patchcord
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | DF/OEM/Nuetral |
| Сертификация: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Номер модели: | ТК-ТИ-ПК--SA-AS-2.0x3.0-ПВХ-XXX |
Оплата и доставка Условия:
| Количество мин заказа: | 100 шт. |
|---|---|
| Цена: | US$0.01~4.69/PC |
| Упаковывая детали: | Экспортная стандартная упаковка |
| Время доставки: | 5-9 рабочих дней в зависимости от количества |
| Условия оплаты: | Western Union,T/T,MoneyGram/Paypal |
| Поставка способности: | 5000 шт/день |
|
Подробная информация |
|||
| Название продукта: | Прозрачный невидимый патч-корд кабеля SC/UPC-SC/UPC FTTH | Потеря взаимодействия: | ≤0,3 дБ |
|---|---|---|---|
| Возвратная потеря: | БКП СМ ≥ 50 дБ | Тип волокна: | OS2, G652D, G657A1, G657A2, G657B3 |
| Диаметр: | 2.0*3.0mm | Тип разъема: | Апк |
| Материал куртки: | ПВХ | Цвет: | Прозрачный |
| Длина волны: | 1310 нм, 1550 нм | Длина: | 3m или подгонянный |
| Рабочая температура: | -20℃~70℃ | Диаметр волокна: | 9/125 |
| Оценка: | Телекоммуникационный класс | Сертификат: | CE/ROHS/REACH |
| Производственная мощность: | 10000 шт/день | ||
| Выделить: | SC/UPC FTTH drop cable,transparent fiber optic patchcord,invisible SC/UPC patchcord |
||
Характер продукции

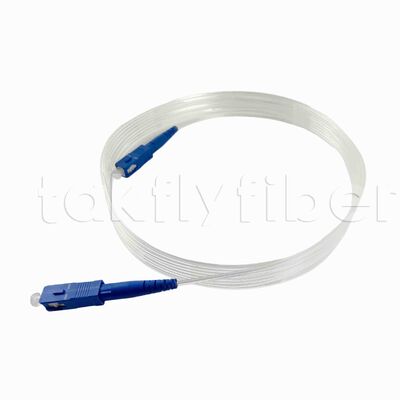

SC/UPC-SC/UPC Transparent Invisible FTTH Drop Cable Patchcord

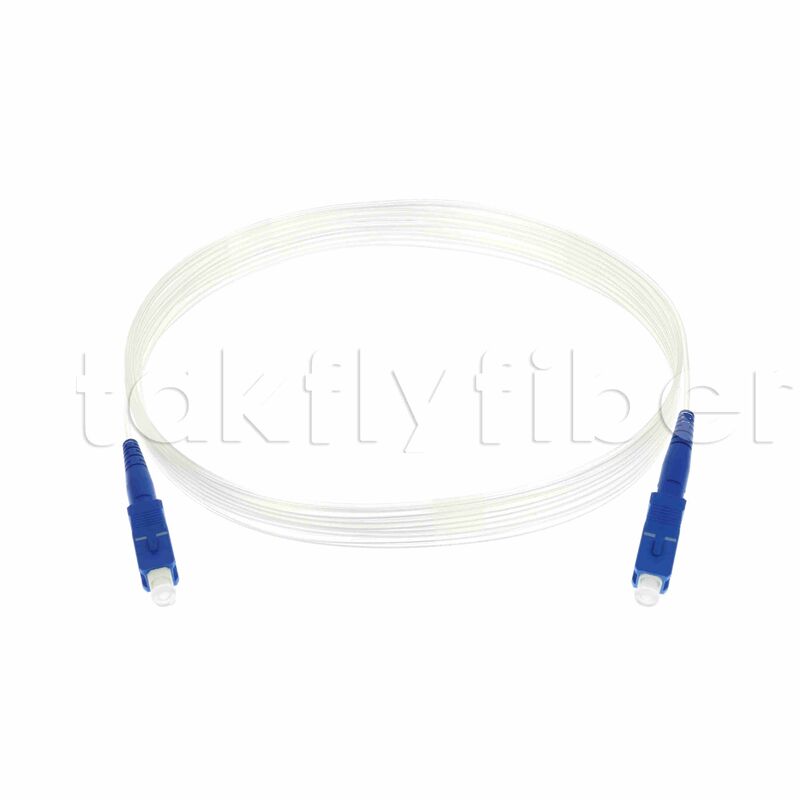

SC/UPC-SC/UPC Transparent Invisible FTTH Drop Cable Patchcord

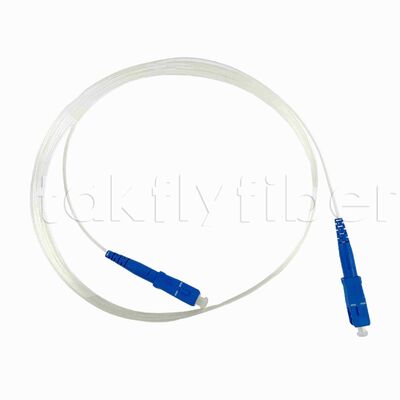

Takfly FTTH 2.0*3.0mm Transparent Invisible Indoor Fiber Optic Patchcord features a 2.0*3.0mm LSZH cable with SC/UPC-SC/UPC connectors, designed for high-performance, low-loss (insertion loss <0.3dB, return loss >55dB) single-mode fiber connections. Ideal for indoor/outdoor FTTH applications, these pre-terminated, rugged assemblies offer 1 fiber count with 100% factory inspection.
Product Specifications
Fiber Optic Attributes
- Mode field diameter: 8.6um ±0.4um at 1310nm
- Cladding diameter: 125.0um ±0.7um
- Coating diameter: 245um ±10um
- Coating-cladding concentricity error: ≤12.5um
- Cut-off wavelength: ≤1260nm
- Attenuation coefficient: 1310 ≤0.4dB, 1550 ≤0.3dB
FTTH Cable Information
- Number of fiber: 1 core
- Fiber type: G657A1/SM G657A2/G657B3
- Strength member material: FRP
- Diameter: 0.5mm*2
- Outer sheath material: LSZH Black
- Cable size: 2.0*3.0mm
Connector Test Specifications
| Item | Specifications |
|---|---|
| Type | SC/APC(1310) |
| Insertion Loss | ≤0.3 dB + 0.36 dB/km*L(km) @ 1310nm ≤0.3 dB + 0.25 dB/km *L(km) @ 1550nm |
| Return Loss | ≥60dB |
| Endface | IEC 61300-3-35 |
| Durability (1000 Mating) | 0.2dB Max. increase |
| Installation Temperature | -10℃～+60℃ |
| Operating Temperature | -25℃~70℃ |
| Storage Temperature | -40℃~75℃ |
| Cable pull | 70N |
Optical Fiber Performance
| Parameter | Long Term | Short Term |
|---|---|---|
| Tensile strength | 40N | 80N |
| Crush load | 500N | 1000N |
| Wavelength (nm) | 1310/1550 | |
| Attenuation (dB) | 0.4/0.3 | |
| Cladding diameter (um) | 125±1 | |
| Cladding non-circularity | ≤1.0% | |
| Coating diameter (um) | 242±7 | |
Detailed Parameters
| NO. | Item | Unit | Specification (SM G657A2) |
|---|---|---|---|
| 1 | Mode Field Diameter | 1310nm: μm 1550nm: μm |
8.2~9.0 9.1~10.1 |
| 2 | Cladding Diameter | μm | 125±0.7 |
| 3 | Cladding Non-Circularity | % | ≤0.7 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12 |
| 8 | Cutoff Wavelength | nm | λcc ≤1260 |
| 9 | Attenuation (Max) | 1310nm: dB/KM 1550nm: dB/KM |
≤0.36 ≤0.25 |
| 10 | Macro-Bending Loss | 1 Turn x 7.5mm radius@1550nm: dB 1 Turn x 7.5mm radius@1265nm: dB |
≤0.08 ≤0.25 |
Applications
- FTTR (Fiber to the Room): Enables seamless fiber connectivity in residential or commercial indoor environments
- Indoor Optical Networks: Ideal for high-speed data transmission with minimal visibility impact
- Telecom Systems: Reliable connectivity for LAN, WAN, and metro networks
- Smart Homes: Supports modern home networks requiring aesthetically pleasing and high-performance cabling
- Enterprise Networking: Suitable for discreet indoor installations in offices and business centers
Key Features
- Invisible Fiber Design: 2.0*3.0mm cable with transparent finish blends into surroundings for discreet indoor use
- High-Performance SC/SC Connectors: Ensures low insertion loss and high return loss for stable signal transmission
- Compact and Flexible: Easy to route around corners, walls, and ceilings without affecting performance
- Low Bend Sensitivity: Built with G.657A2/B3 fiber for excellent bend performance and durability
With more than 10 years of sales experience and shipping experience in optical fiber products, we have helped more than 127 customers to expand their business and increase sales. We believe we can provide you with professional guidance, help you save time and money, and increase your sales.
