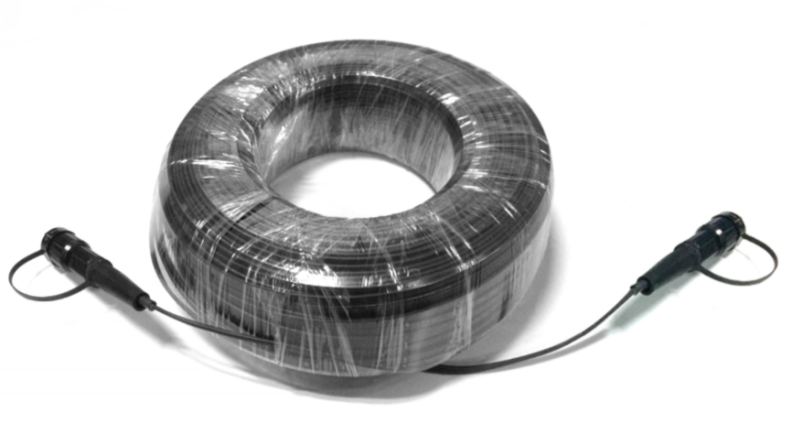

FTTH Drop Cable Patchcord G657A1 LZOH SC/APC-SC/APC, 3.0*2.0mm, Non Messenger Wire
Подробная информация о продукте:
| Место происхождения: | Китай, Шэньчжэнь |
| Фирменное наименование: | DF/OEM/Nuetral |
| Сертификация: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Номер модели: | ТК-ПК-48Ф-СК-ОС2-50М |
Оплата и доставка Условия:
| Количество мин заказа: | Возможен торг |
|---|---|
| Цена: | negotiable denpend on QTY |
| Упаковывая детали: | Блистерная коробка+картонная коробка |
| Время доставки: | 5-9 рабочих дней в зависимости от количества |
| Условия оплаты: | Western Union, T/T, MoneyGram/Paypal |
| Поставка способности: | 1000 шт./День |
|
Подробная информация |
|||
| Название продукта: | Патч-корд G657A1 LZOH SC/APC-SC/APC для ответвительного кабеля FTTH | Тип: | СК/АПК(1310) |
|---|---|---|---|
| Конечная грань: | МЭК 61300-3-35 | Вносимая потеря: | ≤0,3 дБ + 0,36 дБ/км*L(км) при 1310 нм ≤0,3 дБ + 0,25 дБ/км *L(км) при 1550 нм |
| Возвращаяся потеря: | ≥60db | Прочность(1000Спаривание): | Максимальное увеличение 0,2 дБ |
| Температура установки: | -10 ℃～+60 ℃ | Рабочая температура: | -25 ℃ ~ 70 ℃ |
| Температура хранения: | -40 ℃ ~ 75 ℃ | Материал внешней оболочки: | ЛСЖ Черный |
| Длина: | Индивидуальные | Оптоволоконная марка: | Корнинг, YOFC, OFS, Дракка |
| Выделить: | FTTH drop cable G657A1 SC/APC,fiber optic patchcord non messenger wire,SC/APC patchcord 3.0*2.0mm LZOH |
||
Характер продукции
FTTH Drop Cable Patchcord G657A1 LZOH SC/APC-SC/APC, 3.0*2.0mm, Non Messenger Wire
Description
A Fast Connect drop cable adopts an anti-vibration design. It allows plug and play (no splicing), helps customers deploy it fast, and reduces time. In addition, it ensures high network reliability and durability.
Product Attributes
- Mode field diameter: 8.6um±0.4um at 1310nm
- Cladding diameter: 125.0um±0.7um
- Coating diameter: 245um±10um
- Coating-cladding concentricity error: ≤12.5um
- Cut-off wavelength: ≤1260nm
- Attenuation coefficient: 1310≤0.4dB 1550≤0.3dB
FTTH Cable Information
- Number of fiber: 1 core
- Fiber type: G657A1
- Strength member material: FRP
- Diameter: 0.4mm
Outer Sheath
- Material: LSZH Black
- Cable size: 3.0*2.0mm
Connector Features & Benefits
- Fast deployment, plug and play
- IP67 protection
- Anti-vibration design
- Ferrule protection and orientation design
- Easy to install and uninstall
Test Specifications
| Item | Specifications |
|---|---|
| Type | SC/APC(1310) |
| Insertion Loss | ≤0.3 dB + 0.36 dB/km*L(km) @ 1310nm ≤0.3 dB + 0.25 dB/km *L(km) @ 1550nm |
| Return Loss | ≥60dB |
| Endface | IEC 61300-3-35 |
| Durability(1000Mating) | 0.2dB Max.increase |
| Installation Temperature | -10℃～+60℃ |
| Operating Temperature | -25℃~70℃ |
| Storage Temperature | -40℃~75℃ |
| Cable pull | 80N |
Optical Fiber Performance
| Tensile strength | Long term(N) | 40 |
|---|---|---|
| Short term(N) | 80 | |
| Crush load | Long term(N) | 500 |
| Short term(N) | 1000 | |
| wavelength(nm) | 1310/1550 | |
| Attenuation(dB) | 0.4/0.3 | |
| Cladding diameter(um) | 125±1 | |
| Cladding non-circularity | ≤1.0% | |
| Coating diameter(um) | 242±7 | |
Product Images
Why Choose TAKFLY?
Professional Manufacturer
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
FAQ
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Further-more we will also take action to improve the quality in future
Q6: What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10: Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
If you're interested in our products or have any doubt, feel free to contact me at any time!
