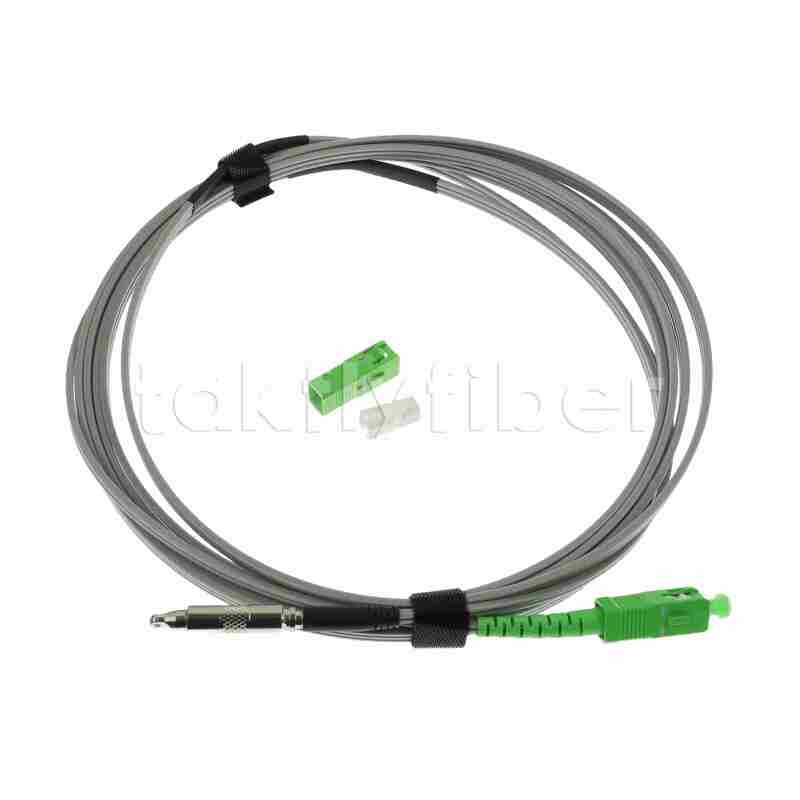

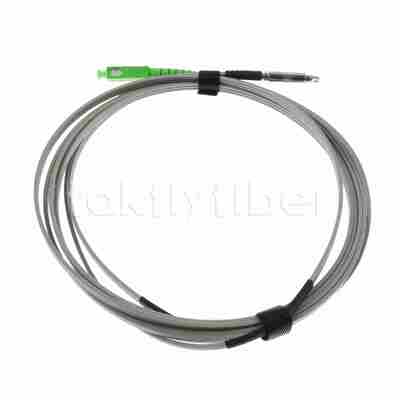

2.0*5.2mm SC/APC to SC/APC Pushable Fiber Drop Cable Assemblies for FTTH and FTTP
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | DF/OEM/Nuetral |
| Сертификация: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Номер модели: | ТК-ПК-SAP-SA-AS-3.0-ТПУ |
Оплата и доставка Условия:
| Количество мин заказа: | 100 шт. |
|---|---|
| Цена: | US$0.01~4.69/PC |
| Упаковывая детали: | Экспортная стандартная упаковка |
| Время доставки: | 5-9 рабочих дней в зависимости от количества |
| Условия оплаты: | Western Union,T/T,MoneyGram/Paypal |
| Поставка способности: | 5000 шт/день |
|
Подробная информация |
|||
| Название продукта: | 2,0*5,2 мм SC/APC - SC/APC толкаемые оптоволоконные кабели для FTTH и FTTP | Потеря взаимодействия: | ≤0,3 дБ |
|---|---|---|---|
| Возвратная потеря: | СМ APC ≥ 60 дБ | Тип волокна: | OS2, G652D, G657A1, G657A2, G657B3 |
| Диаметр: | 2.0*5,2 мм | Тип разъема: | Апк |
| Материал куртки: | ЛСЖ | Цвет: | Черный |
| Длина волны: | 1310 нм, 1550 нм | Длина: | 5 м или индивидуально |
| Рабочая температура: | -20℃~70℃ | Диаметр волокна: | 9/125 |
| Оценка: | Телекоммуникационный класс | Сертификат: | CE/ROHS/REACH |
| Производственная мощность: | 000ПК/день | Кратковременная прочность при растяжении: | ≥ 200N |
| Выделить: | 2.0*5.2mm SC/APC fiber drop cable,SC/APC pushable fiber assemblies,FTTH FTTP fiber optic patchcord |
||
Характер продукции
FTTH FTTX Pullable Bullet SC/APC to SC/APC Fiber Optic Patchcord, SM G657A2, 2.0×5.2mm, LSZH Jacket

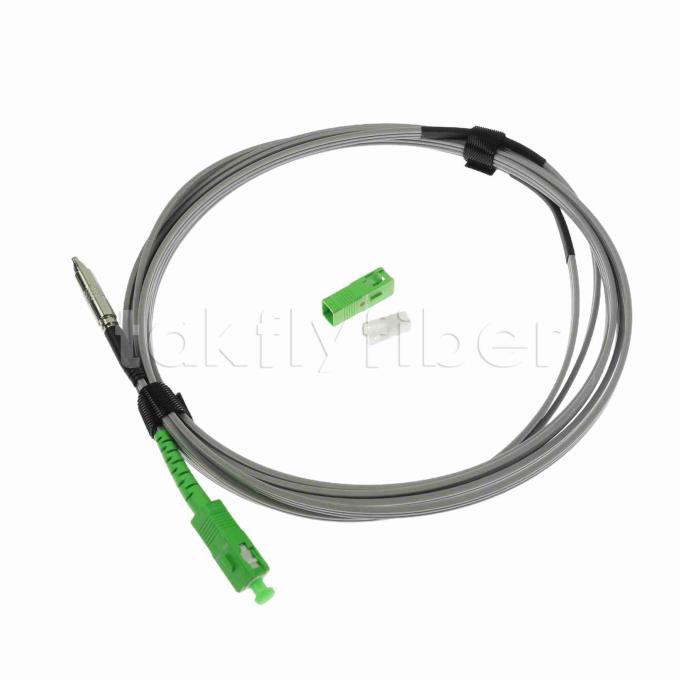

Takfly Pushable Fiber Drop Cable Assemblies are purpose-built for fast, clean installations in fiber-to-the-home (FTTH) and fiber-to-the-premises (FTTP) networks. Each assembly features a factory-terminated SC/APC connector designed to be pushed through microducts, conduit, or walls, then snapped directly into a terminal housing—eliminating the need for splicing or specialized tools.
If routing through a wall, simply drill a 3/8″ hole for cable entry. The Pushable SC/APC connector can be pushed through existing microduct or conduit—no drilling required—and once routed, the SC/APC housing snaps onto the ferrule without tools. The final connection is made by plugging directly into an Optical Network Terminal (ONT), wall plate, or enclosure.
Built with bend-insensitive single-mode fiber (G.657.A2 or G.657.B3), these rugged, low-profile assemblies are ideal for tight routing environments such as Single-Family Units (SFUs) and Multi-Dwelling Units (MDUs). Assemblies are made to order in custom lengths, with optional pulling eyes, and are available in black or white jackets.
- Mode field diameter: 8.6μm ±0.4μm at 1310nm
- Cladding diameter: 125.0μm ±0.7μm
- Coating diameter: 245μm ±10μm
- Coating-cladding concentricity error: ≤12.5μm
- Cut-off wavelength: ≤1260nm
- Attenuation coefficient: 1310 ≤0.4dB, 1550 ≤0.3dB
- Number of fiber: 1 core
- Fiber type: G657A1
- Strength member material: FRP
- Diameter: 0.5mm × 2
- Self support Messenger wire: Steel wire, Diameter: 1.0mm
- Outer sheath: LSZH Black, Cable size: 5.0×2.0mm
| Item | Specifications |
|---|---|
| Type | SC/APC(1310) |
| Insertion Loss | ≤0.3 dB + 0.36 dB/km×L(km) @ 1310nm ≤0.3 dB + 0.25 dB/km ×L(km) @ 1550nm |
| Return Loss | ≥60dB |
| Endface | IEC 61300-3-35 |
| Durability (1000 Mating) | 0.2dB Max. increase |
| Installation Temperature | -10℃～+60℃ |
| Operating Temperature | -25℃~70℃ |
| Storage Temperature | -40℃~75℃ |
| Cable pull | 90N |
| Parameter | Long Term | Short Term |
|---|---|---|
| Tensile strength (N) | 200 | 500 |
| Crush load (N) | 1000 | 2000 |
| Wavelength (nm) | 1310/1550 | |
| Attenuation (dB) | 0.4/0.3 | |
| Cladding diameter (μm) | 125±1 | |
| Cladding non-circularity | ≤1.0% | |
| Coating diameter (μm) | 242±7 | |
| NO. | Item | Unit | Specification (SM G657A2) |
|---|---|---|---|
| 1 | Mode Field Diameter (1310nm) | μm | 8.2~9.0 |
| 1 | Mode Field Diameter (1550nm) | μm | 9.1~10.1 |
| 2 | Cladding Diameter | μm | 125±0.7 |
| 3 | Cladding Non-Circularity | % | ≤0.7 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12 |
| 8 | Cable Cutoff Wavelength | nm | λcc ≤1260 |
| 9 | Attenuation (Max) 1310nm | dB/KM | ≤0.36 |
| 9 | Attenuation (Max) 1550nm | dB/KM | ≤0.25 |
| 10 | Macro-Bending Loss (1 Turn × 7.5mm radius@1550nm) | dB | ≤0.08 |
| 10 | Macro-Bending Loss (1 Turn × 7.5mm radius@1265nm) | dB | ≤0.25 |
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- FTTH, FTTX
- Wide area networks (WANS)
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
